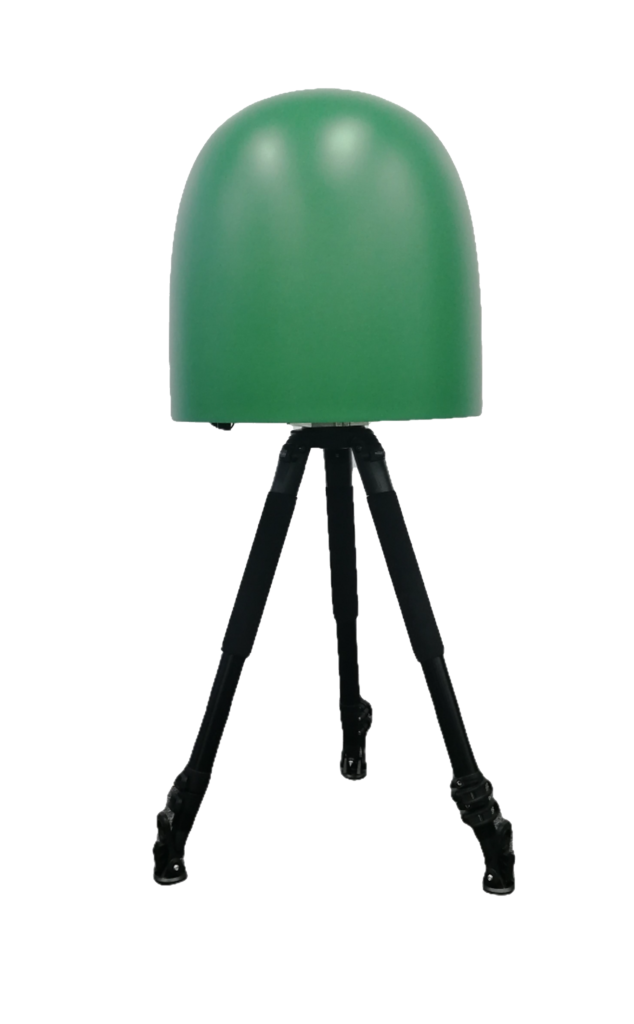

ZDA8
Fixed Integrated Drone Detector and Strike Jammer
The system is used for UAV detection, identification and jamming.
The system integrates various technologies such as cooperative
spectrum sensing, deep neural network, etc. The system uses radio detection technology, received UAV characteristic signals, big data processing, etc, to achieve effective detection, identification and
orientation of low-altitude UAVs in the defence zone. It uses radio jamming and blocking technology to achieve effective control of
intruding drones. The system achieves low-altitude three-dimensional protection within a radius of more than 5,000 meters of the defence
area, and it has been applied to a large number of government
agencies, prisons, airports, military restricted areas, major events and other fields.
Product features:
- Detection and interference integration, smaller and lighter
- Passive detection, 360°omnidirectional, 70MHz-6GHz ultra-wide spectrum detection range
- With the ability of independent learning to identify unknown UAVs, can record the signal characteristics of the UAV in flight, including industrial UAVs and consumer UAVs with broadband and frequency hopping mapping
- Multi-antenna array design, suitable for urban particularly complex electromagnetic environment, suburban environment detection up to 5000M
- With whitelist function
- Unique intelligent gain, adapt to the complex electromagnetic environment detection needs
- Directional countermeasures, not too much impact on other communications, high efficiency, RF power is small
- Special frequency-hopping signal recognition technology, can distinguish between multiple remote controls and industrial-grade frequency-hopping drones.
Main parameters:
Detection parameter | 1.Detect signal type | UAV data transmission signal, UAV remote control signal, wifi system UAV signal |
2.Detection frequency band | 70MHz~6GHz | |
3.Angle measurement accuracy (AOA mode) | ≤3°(RMS) | |
4.Position accuracy | AOA single station can be positioned, accuracy ≤100m | |
5.Detection range radius | ≥5km | |
6.Detection range | Level 360°, pitch > ±45° | |
7.Find the time | ≤3s | |
8.Automatically calibrate the direction | No manual calibration required, north precision ≤2° | |
9.Whitelist function | Enables identification of friend and foe | |
Countermeasure parameters | 1.Counter distance | 1000m-2000m |
2.Response time | ≤3s | |
3.Interference band 1 | 410-480MHz 25W | |
4.Interference band 2 | 810-975MHz 25W | |
5.Interference band 3 | 1130-1290MHZ 10W | |
6.Interference band 4 | 1540-1640MHZ 10W | |
7.Interference band 5 | 2395~2505MHz 25W | |
8.Interference band 6 | 5135-5350MHz 50W | |
9.Interference band 7 | 5500-5630MHz 50W | |
10.Interference band 8 | 5730~5865MHz 25W |
